Tool Placement in BHA in Geosteering
May 8, 2023· 2 minutes reading

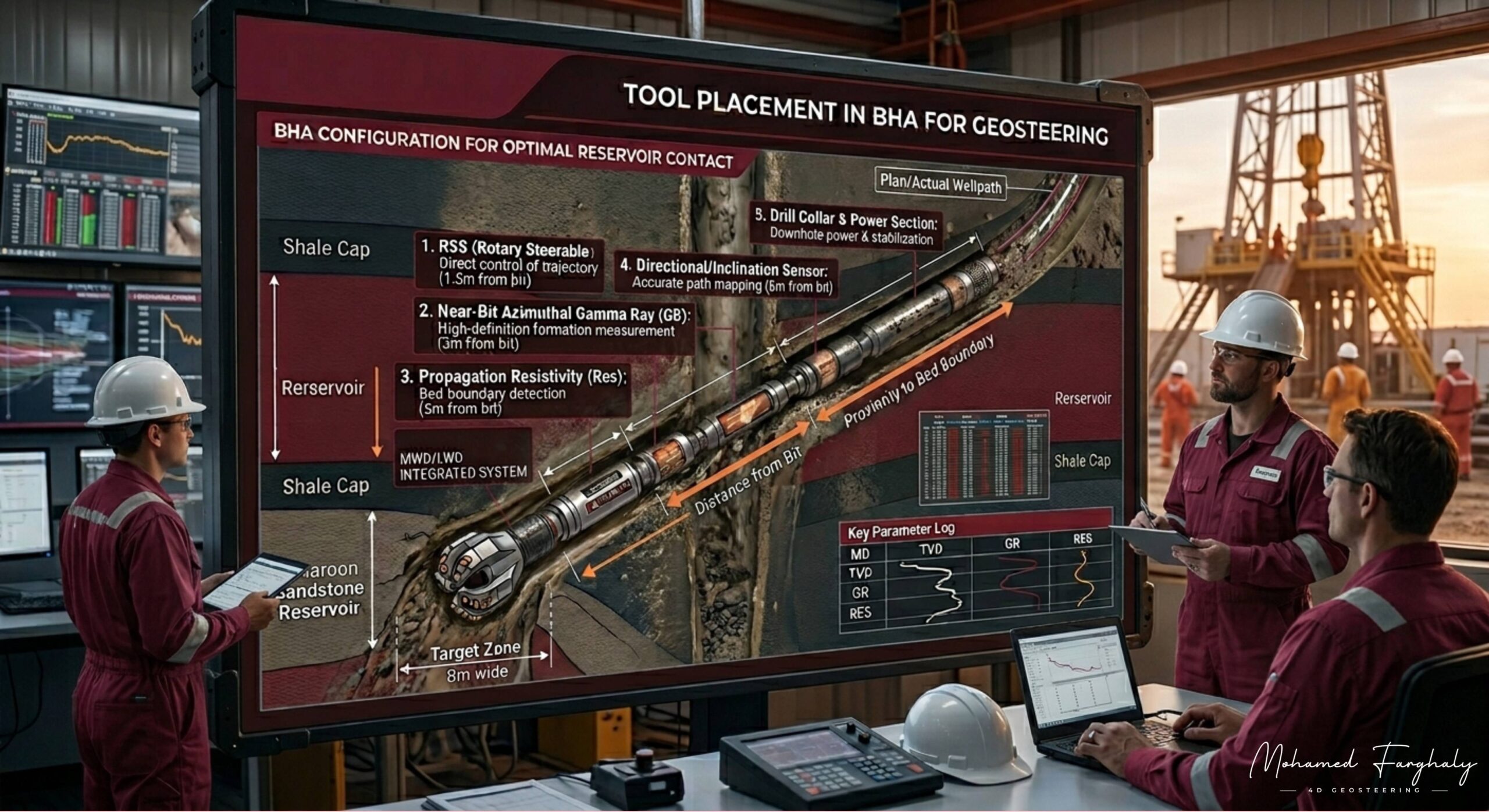

In modern geosteering operations, success is not determined only by the quality of geological interpretation or the accuracy of formation evaluation. One of the most critical factors behind precise well placement is tool placement inside the Bottom Hole Assembly (BHA). The position of each measurement tool relative to the drill bit directly affects how quickly the drilling team detects formation changes and reacts to them in real time.
The Bottom Hole Assembly (BHA) is the lower section of the drill string that includes the drill bit, motors, stabilizers, and measurement tools such as MWD (Measurement While Drilling) and LWD (Logging While Drilling) sensors. In geosteering, the placement of these tools determines whether the team receives early warnings about formation boundaries or delayed information after the bit has already exited the target zone.
One of the most important concepts in BHA design is the difference between near-bit and far-bit sensor placement. Near-bit tools are positioned very close to the drill bit, sometimes only a few feet away. This setup allows geosteering teams to detect lithology changes almost immediately, reducing reaction time and improving steering precision in thin reservoirs. Near-bit measurements are especially valuable in highly complex formations where rapid geological decisions are required.
On the other hand, far-bit tools are located farther behind the bit in the BHA. Although they may provide higher-quality or more stable measurements, the data arrives later because the bit has already drilled ahead before the formation is evaluated. This delay can increase the risk of exiting the reservoir before corrective steering actions are taken.
The placement of tools also depends on the drilling objective and reservoir characteristics. In thin reservoirs, operators often prefer near-bit gamma ray or resistivity tools to maximize wellbore exposure within the productive zone. In thicker formations, slightly farther tool placement may still provide sufficient reaction time while improving data reliability.
Modern geosteering operations carefully optimize BHA configurations to balance measurement accuracy, response time, drilling efficiency, and well placement precision. As drilling technologies continue to evolve, intelligent BHA designs are becoming essential for reducing uncertainty and improving reservoir navigation in increasingly challenging wells.
